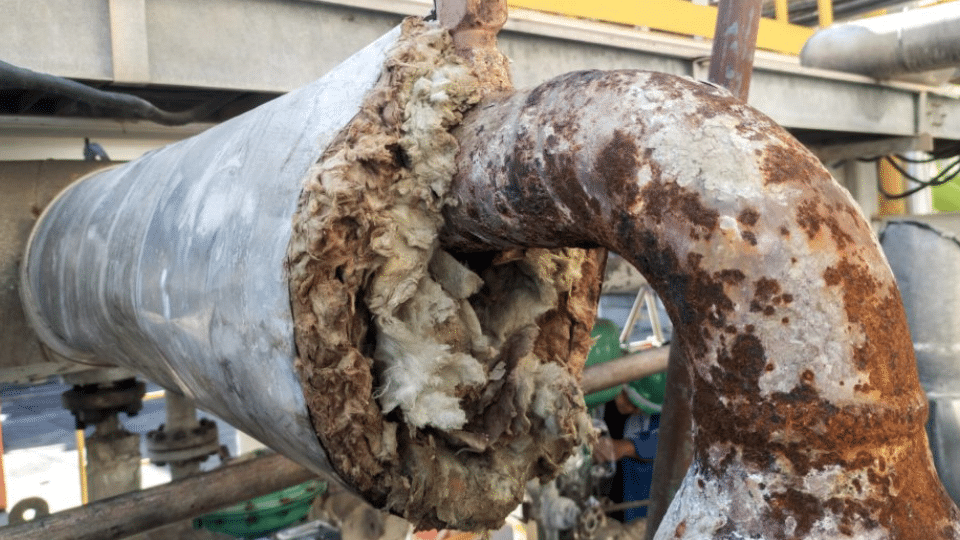

Corrosion under insulation, or CUI, is tricky because it happens out of sight. Moisture sneaks beneath the insulation and stays against the metal surface of pipes, vessels, or equipment, setting the stage for corrosion that’s hidden until the insulation is removed or something fails. This is a well-known headache in industrial settings and damage quietly worsening until it’s too late.
For those running facilities in BC, CUI isn’t just a technical detail—it impacts insulated pipes, tanks, pressure vessels, and process gear across energy, manufacturing, and infrastructure sectors. Tatras Industrial already covers areas closely related to CUI in their work on structural inspections, corrosion protection, insulation, and maintenance, especially where access is tough.
What Is Corrosion Under Insulation?
Simply put, it’s corrosion forming on the outside of insulated metal equipment when water gets inside the insulation system and stays trapped against the metal. This can happen because of rain, condensation, damaged cladding, poor seals, aging insulation, or certain process conditions. Industry experts from Inspectioneering and AMPP highlight that this form of corrosion stays hidden under insulation layers.
Since the metal is covered, routine visual checks might not catch the problem early. Signs like staining, jacket damage, bulging, or leaks usually mean the corrosion has advanced more than expected. That’s why CUI often takes priority during inspections in industrial sites.
Why Corrosion Under Insulation Is a Serious Risk
CUI is more than just a minor maintenance issue. Left undetected, it can cause wall thinning, localized corrosion, containment failures, unexpected shutdowns, and expensive repairs. Both research and industry guidelines stress that CUI is difficult to spot and can seriously affect the reliability and integrity of process equipment.
This risk grows particularly in environments exposed to moisture—whether from wet climates, corrosive atmospheres, or temperature cycles that encourage repeated drying and wetting. Conditions like marine exposure, weather swings, damaged insulation barriers, and aging insulation all increase the chances of CUI developing over time.
Corrosion Under Insulation Temperature Range
One common question is about the temperature range where CUI occurs. While there isn’t a strict cutoff, industry guidance often points to a higher risk around 25°F to 250°F for carbon steel piping. Some sources extend that range from 10°F to 350°F or highlight more severe risk between 212°F and 350°F, depending on the asset. Ultimately, material type, operating conditions, insulation, and moisture exposure play big roles.
Because these ranges vary widely, it’s more useful to focus on risk factors like water ingress frequency, jacketing condition, seal integrity, and accessibility challenges instead of zeroing in on exact temperatures.
Corrosion Under Insulation Inspection
Inspecting for CUI usually starts with spotting visible clues on the insulation exterior—damaged jackets, staining, wet insulation, missing seals, or corrosion near supports and penetrations. AMPP notes that visual inspection is an early but crucial step in assessing risk.
From there, the approach often involves targeted insulation removal, checking metal thickness, and using non-destructive testing techniques. The inspection process frequently combines visual examination, partial or full insulation removal, and ultrasonic testing to evaluate damage.
Access poses a real challenge for inspecting CUI, especially for elevated or congested piping and vessels. This is where Tatras Industrial’s expertise in industrial rope access, structural and mechanical inspections, corrosion protection, and insulation work becomes highly relevant, enabling inspection in hard-to-reach spots.
Corrosion Under Insulation Testing
When it comes to testing for CUI, inspectors aim to confirm corrosion presence beneath insulation. Depending on objectives and technology, tests might be done without removing insulation or require selective removal. Typical methods include:
- Visual checks of insulation exteriors
- Selective insulation removal
- Ultrasonic thickness measurements after exposing metal
- Screening to highlight higher-risk zones
- Follow-up nondestructive testing tailored by asset and access
Choosing the right testing depends on asset type, environment, expected damage, and whether the goal is screening, confirmation, or planning repairs.
Common Assets Affected by CUI
CUI frequently appears in insulated piping, pressure vessels, tanks, and various process equipment—essentially anywhere moisture can get trapped beneath insulation. Because of this, the topic holds weight for industrial sectors like energy, manufacturing, processing, and heavy industry. Tatras Industrial’s services in inspections and corrosion protection are well aligned with these needs.
Why Early CUI Detection Matters
Catching CUI early matters because it opens more options for targeted repairs, insulation replacement, corrosion mitigation, and maintenance scheduling. Letting damage go unseen until external signs show up generally means higher costs, longer downtime, and broader repairs. Research points out that hidden corrosion challenges asset integrity precisely because it can linger unnoticed for so long.
Being proactive helps teams:
- Spot suspect areas sooner
- Prioritize fixes before corrosion worsens
- Cut down on unexpected failures
- Plan shutdowns and maintenance more efficiently
Access is often the bottleneck in both inspecting and maintaining CUI-prone assets. Rope access and specialized support come into their own where scaffolding is impractical or time-sensitive inspections are needed, such as during outages.
Support for Difficult-Access CUI Inspection Work
Across Canada, Tatras Industrial specializes in difficult-access industrial work, combining rope access, structural and corrosion inspections, and maintenance services. Their expertise suits facilities facing stubborn challenges around insulated asset inspections.
If your operation struggles with inspecting or maintaining insulated systems in tough-to-reach areas, Tatras Industrial can help. Reach out to discuss how their rope access and corrosion support services might fit your project.
FAQs – Corrosion Under Insulation
Corrosion under insulation also known as CUI is the forming of corrosion on metal surfaces beneath insulation when moisture gets trapped, common in insulated pipes, vessels, and equipment.
Moisture infiltrates insulation via damaged cladding, failed seals, weather, condensation, or aging insulation. The trapped water then sparks corrosion on the metal.
No single range fits all, but elevated risk often lies between 25°F and 250°F for carbon steel piping, and up to 350°F depending on materials and conditions.
Inspections start with visual signs outside insulation, proceed with selective insulation removal, and involve testing like ultrasonic thickness checks based on risk and access.
Methods include visual assessment, insulation removal, ultrasonic testing, and other nondestructive techniques; sometimes inspection happens without removing insulation.
CUI is the corrosion problem itself, while a corrosion inspection company offers services to detect, assess, and help manage it. For more on providers, see our guide on corrosion inspection companies in BC.
